STLINK-V3MINI, Compact In-Circuit Debugger - Waveshare

(0) 0 out of 5 stars Write reviewReport bug
  • Part No :
  • PRO-2731
  • Availability:
  • In Stock
  • Shipping :
  • Same Day*
  • Weight:
  • 0.14Kg
  • Made By:
  • Waveshare
  • Mfr.Part.No:
  • 17521
Rs 2099
(Excluding GST.)
Rs 2477
(Including GST)
2477 rhydoLABZ.com New In Stock
  • Buy & earn 210  reward points
  • GST Invoice & Input Credit Available
Quantity :

The STLINK-V3MINI is stand-alone debugging and programming mini probe for STM32 microcontrollers. The JTAG/SWD interfaces are used to communicate with any STM32 microcontroller located on an application board.The STLINK-V3MINI also provides a Virtual COM port interface allowing the host PC to communicate with the target microcontroller through one UART. The STLINK-V3MINI is a portable version, easy-to-use debugger/programmer including STDC14 interface with its flat cable.

Features:

  • Stand-alone probe
  • Approximately 15 x 30 mm high-density integration PCB, very small form factor
  • Self-powered through a Micro-B USB connector (does not provide power supply to the target application)
  • USB 2.0 high-speed compatible interface
  • Direct firmware update (DFU) support, to use with more future devices
  • JTAG / serial wire debugging (SWD) specific features:
    • 3 V to 3.6 V application voltage support and 5 V tolerant inputs
    • Delivered with 1.27 mm pitch STDC14 to STDC14 flat cable
    • Additional adapter board and 2.54 mm pitch 20-pin JTAG/SWD flat cable (extra accessories from Waveshare)
    • SWD and serial wire viewer (SWV) communication support
  • Virtual COM port (VCP) specific features:
    • 3 V to 3.6 V application voltage support on the UART interface and 5 V tolerant inputs
    • VCP frequency up to 15 MHz
  • Drag-and-drop Flash programming
  • Two color LEDs: communication, power
  • Includes STDC14 signals protection

Supported Devices:

  • All STM32 MCUs with JTAG / SWD interface

Supported Software:

  • STM32CubeProgrammer
  • Keil® MDK-ARM
  • IAR™ EWARM
  • SW4STM32
  • STVP
  • GCC-based IDEs

Example

Connect to PC:
The STLINK-V3MINI should be connected to the PC via a USB Micro-B cable.

  • Before connecting, install/update the ST-LINK toolset to support the STLINK-V3MINI (drivers)
  • STLINK-V3MINI adopts an STM32 F7 microcontroller, supports USB2.0 high speed communication

Connect to STM32 Applications
The STLINK-V3MINI can be connected to STM32 target applications on JTAG / SWD interfaces.

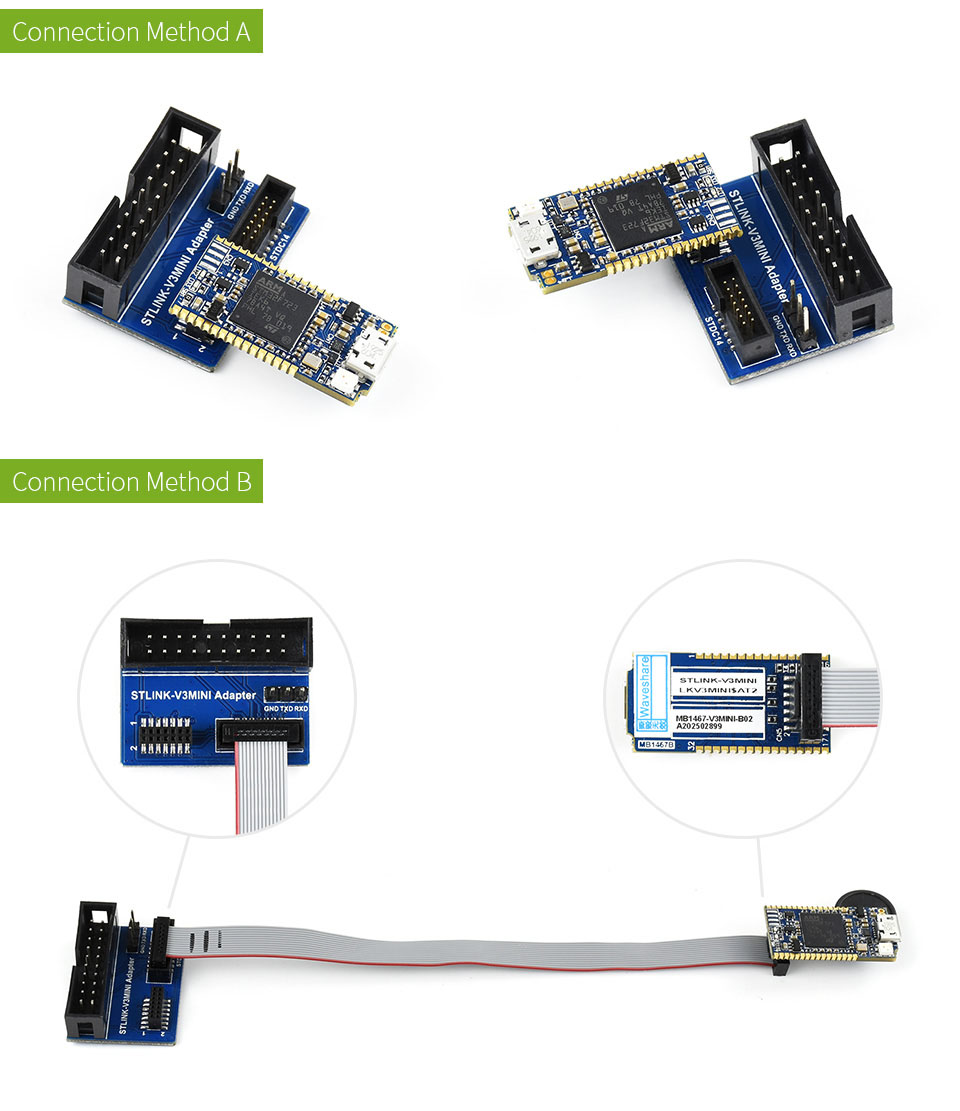

  • Connection Method A: connect to target application directly via the onboard STDC14 connector.
  • Connection Method B: connect to target application via the STLINK-V3MINI Adapter board.

Package Includes:

  • 1x STLINK-V3MINI official content
  • 1x STLINK-V3MINI Adapter
  • 1x USB type A plug to micro B plug cable
  • 1x 20-pin JTAG/SWD flat ribbon
  • 1x 3-pin 2.54mm pitch squid wire
