USB Sound Card, Driver-Free, for Raspberry Pi / Jetson Nano

(0) 0 out of 5 stars Write reviewReport bug
  • Part No :
  • RAS-3426
  • Availability:
  • In Stock
  • Shipping :
  • Next Day***
  • Weight:
  • 0.8Kg
  • Made By:
  • Waveshare
  • Mfr.Part.No:
  • 18833
  • Quality Rank:
  • 95/100
Rs 646
(Excluding GST.)
Rs 762
(Including GST)
762 rhydoLABZ.com New In Stock
  • Buy & earn 65  reward points
  • GST Invoice & Input Credit Available
Quantity :


This is an USB sound card, support recording and playback, stereo codec, built-in microhpne and speaker. It is suitable for Raspberry Pi/ Jetson Nano. driver-freen, plug and play.

Features:

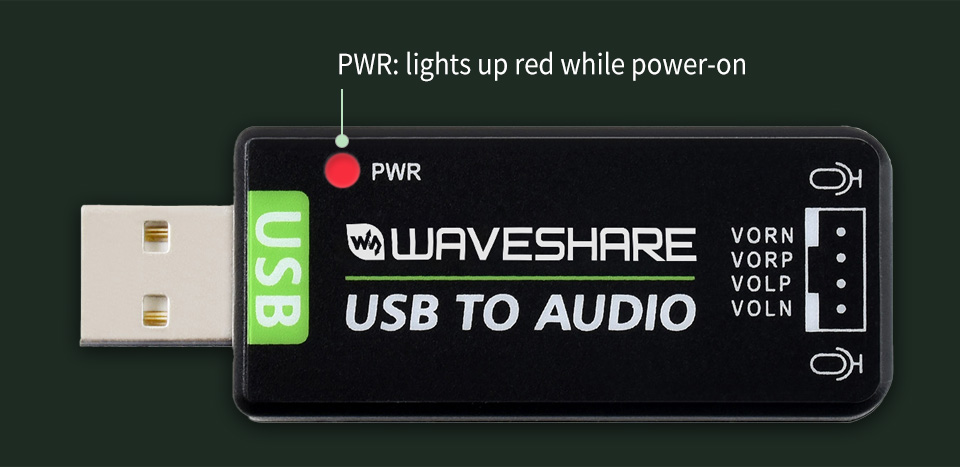

  • Onboard Power indicators for checking working status
  • Onboard microphone and speaker, support audio input/output
  • Driver-free, plug, and play. Compatible with Windows, Mac OS, Linux, and Android
  • Standard USB 2.0 port, portable size

Specification:

  • Power voltage:5V
  • Audo Encoder/Decoder:SSS1629A5
  • Control port:USB
  • Audio port:PH2.0
  • Seakper driver:2.6W per channel (4Ω BTL)

USB Sound Card

  • Recording And Playback Support, Stereo Codec, Built-In Microphone And Speaker
  • Suitable For Raspberry Pi / Jetson Nano
  • Driver-free, Plug and Play

"Listening / Speaking" Two-In-One

  • Built-In Microphone And Speaker, Easy Audio Input / Output

Multiple Sampling Rates Support

  • Supported Sampling Rates Including 8K, 11.025K, 12K, 16K, 22.05K, 24K, 32K, 44.1K, And Default 48K (Hz)

Multiple Systems Support

  • Supported Systems Including Win7/8/8.1/10, Mac OS, Linux, Android, WinCE

Look Inside

Plug And Play, Easy To Use

  • Standard USB 2.0 Port, Driver-Free, Portable Size

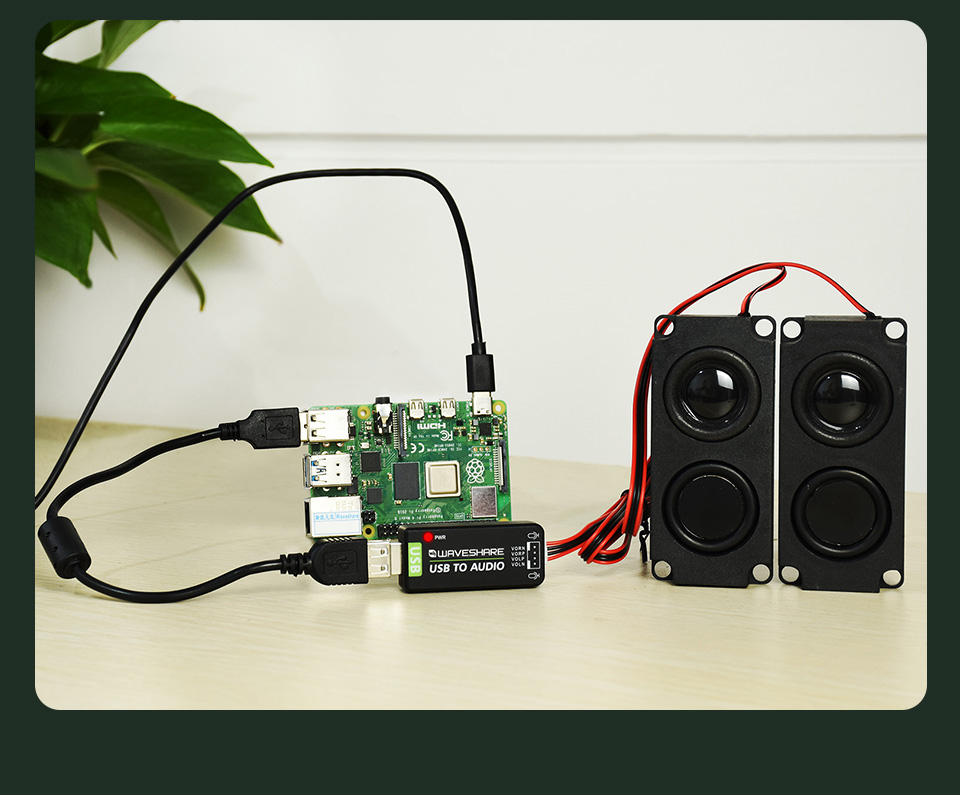

Working with Raspberry Pi

Working with Jetson Nano

Outline Dimensions:

Package Includes:

  • 1x USB TO AUDIO main unit
  • 1x USB cable

Documents/Downloads:
