Evaluation Board for MSP430F413

(0) 0 out of 5 stars Write reviewReport bug
  • Part No :
  • QSB-1328
  • Availability:
  • In Stock
  • Shipping :
  • Same Day*
  • Weight:
  • 0.2Kg
  • Made By:
  • Sparkfun - USA
  • Mfr.Part.No:
  • DEV-00061
  • Quality Rank:
  • 100/100
Rs 3714
(Excluding GST.)
Rs 4383
(Including GST)
4383 rhydoLABZ.com New In Stock
  • Buy & earn 371  reward points
  • GST Invoice & Input Credit Available
Quantity :

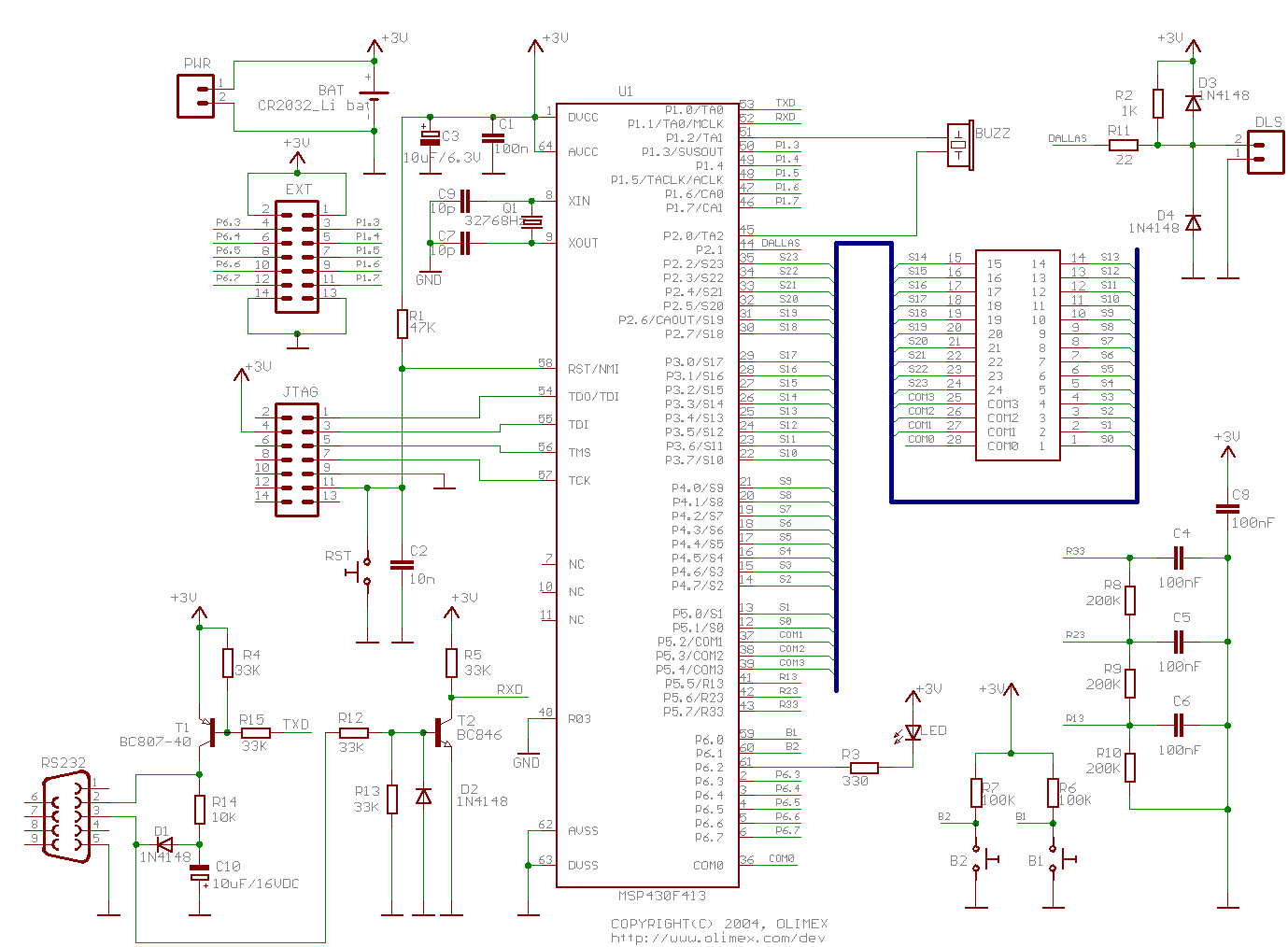

Description: This is the second generation development/prototype board for the MSP430F413 processor from Olimex. Comes with battery power supply circuit, buzzer, new specialized LCD display, crystal oscillator circuit, JTAG port, LEDs, 2 larger Buttons, RS232 interface, and extension ports. New and improved Olimex LCD!

MSP430F413 Evaluation Board:
  • MCU: MSP430F413 with 8K Bytes Program Flash, 256 Bytes data
  • Flash, 256 Bytes RAM
  • JTAG connector
  • Custom LCD panel with 5 digits, 5 decimal counters, special signs
  • RS232 connector
  • RS232 interface circuit with Tx, Rx signals
  • Dallas touch button port
  • Status LED
  • Two buttons
  • Buzzer
  • CR2032 Lithium-battery holder 3V
  • 32.768 kHz oscillator crystal
  • TEST pin pull-down
  • RST/NMI pin pull-up
  • Power supply filtering capacitor
  • Extension headers for unused uC pins
  • PCB: FR-4, 1.5 mm (0,062"), green soldermask, white silkscreen component print
Dimensions: 3.15x1.96" (80x50 mm)
